Continuum 93, a fully assembly programable retro console emulator

Showcase
1

Hey guys!

I’m pretty excited to present the very first functional Continuum 93 retro console emulator.
Before you run off googling “what the heck is Continuum 93”, don’t bother. I made it up. There’s no hardware yet for this, only a software emulator with a configurable CPU (right now hardcoded at 30Mhz), 16 MB of ram (and offcourse a corresponding 24 bit addresing mode) and a video consisting of up to 8 layers that go by 480x270 pixels at 256 colors (each layer with its own palette). 32 bit registers for arithmetic and logic operations are also available.

Right now this is for Windows only. And it’s the actual first step from alpha to beta. But it’s planned to be migrated to MacOS, Linux and most importantly, “some” microcontrollers/miniPC’s (ESP32 family, Raspberry Pi, Banana Pi, Orange Pi etc)

It was developed with gaming in mind and at some point will be able to completely take over above said microcontrollers and turn them into that retro console.

I also invented an assembly instruction set for it and for the ones interested, yes, you can actually write code now in Notepad++ and have it run on Continuum. Keep in mind everything is beta, though, I do have almost 1000 unit tests making sure this is as stable as possible.

Next step (which I am working on now) is to provide an actual debugger as a separate Monogame application that will connect to the emulator through a socket connection to facilitate complex step-by-step debugging, memory viewer and all the tools you’d need to take strong ownership of any project you’d consider.

Other downsides at the moment (besides the lack of step-by-step debugger), no operating system, not much software except for the embedded examples and no tutorials. YET! They’ll eventually be there.

You can download it for free from my itch page. It will always be free for any non-commercial purposes. It comes with manuals, albeit they need a bit of further work. But at least the technical reference shoud be quite helpful.

I plan another update in a month or so with the debugger and an excuse of an OS, hopefully better than just an excuse. :slight_smile:

The expected maturity timeline for this whole project is 1.5+ years, but we’ll see.

Enjoy it and feel free to tell me what you think would be interesting for this project to have.

Happy new year!
Enthusiast Guy

Screen1

Screen4
Screen4781×877 40.6 KB

Screen2

2 Likes
2

Hello again!

Here’s a drive-by to give a bit of update on this project.

Last months I’ve been busy with figuring out and eventually developing a way of enabling debugging to Continuum. I believe I made a good choice by attaching another (MonoGame) application that acts exclusively as a debugger and communicates with the emulator through TCP/IP.

Tools screenshot
Tools screenshot962×572 19.5 KB

So far so good with that.
Other updates include bug fixing, improved manuals, a tiny OS now exists and a sample application you can test the keyboard with. Probably the first end-to-end application Continuum has ever seen so far.
Still lots to do, but here’s a video demo with the update.

Cheers!

1 Like
3

Hey guys!

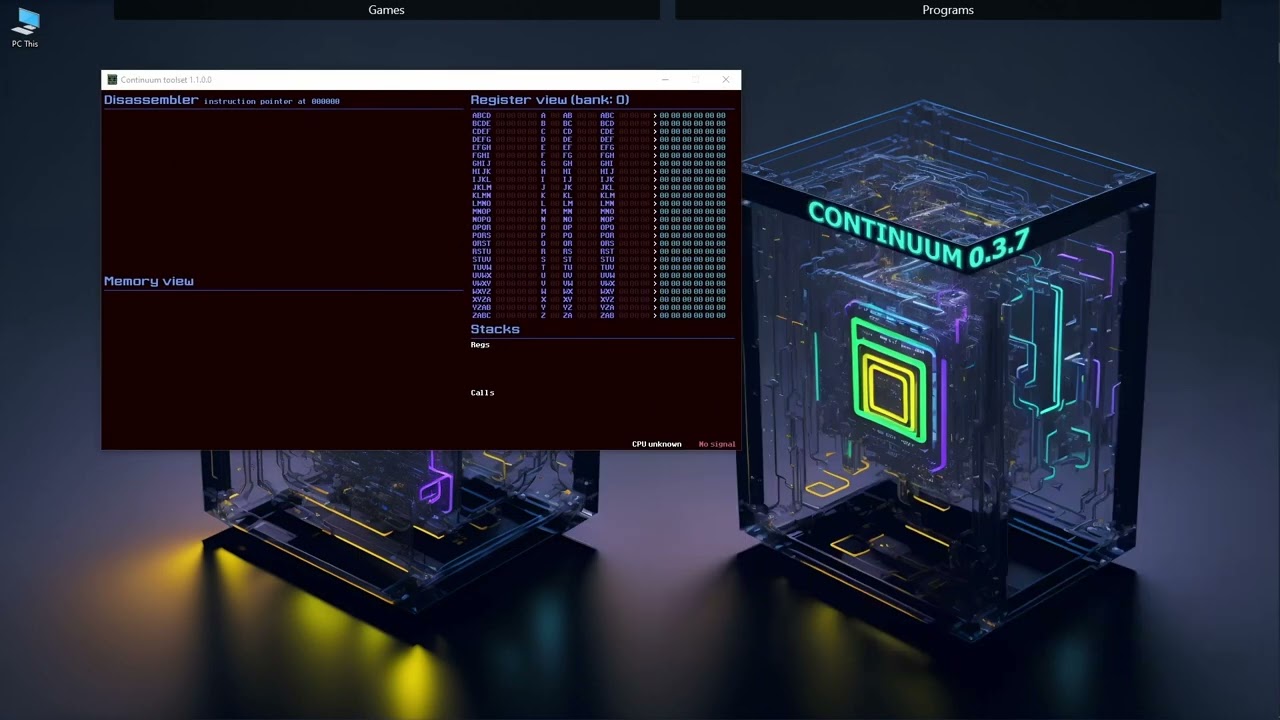

Here is yet another update on the Continuum 93 and Continuum Tools debugger.

In a nutshell:

  • A very much improved debugger, also written with MonoGame;

Tools screenshot
Tools screenshot962×572 35.5 KB

  • new OS for Continuum written directly in the assembly language of this machine;

Q operating system
Q operating system962×572 3.74 KB

  • new way of programming with VS Code and the code can be split over different files;

Programming with VS Code
Programming with VS Code1920×1080 72 KB

  • improved CPU, logging and a bunch of others along with sample programs.

Next step would be to actually add some sound to it before porting it to other platforms.

Here’s also a presentation video for this update.

Cheers!

4

hey just wanted to say this is mega cool. this must have taken a lot of work. I see you, my dude.

1 Like
6

Hey there.

Thanks for the kind words! I’m really glad you like it. :slight_smile:
Yeah, I think it was about a year of work so far, with pauses. I still expect one more year until this matures nicely to where I want it to be.

Cheers!

7

that’s good project, maybe i could design real hardware based on your emulator. Maybe in future

1 Like
